FreeBSD Practical Instructions For Configuring OpenLDAP Server and Client

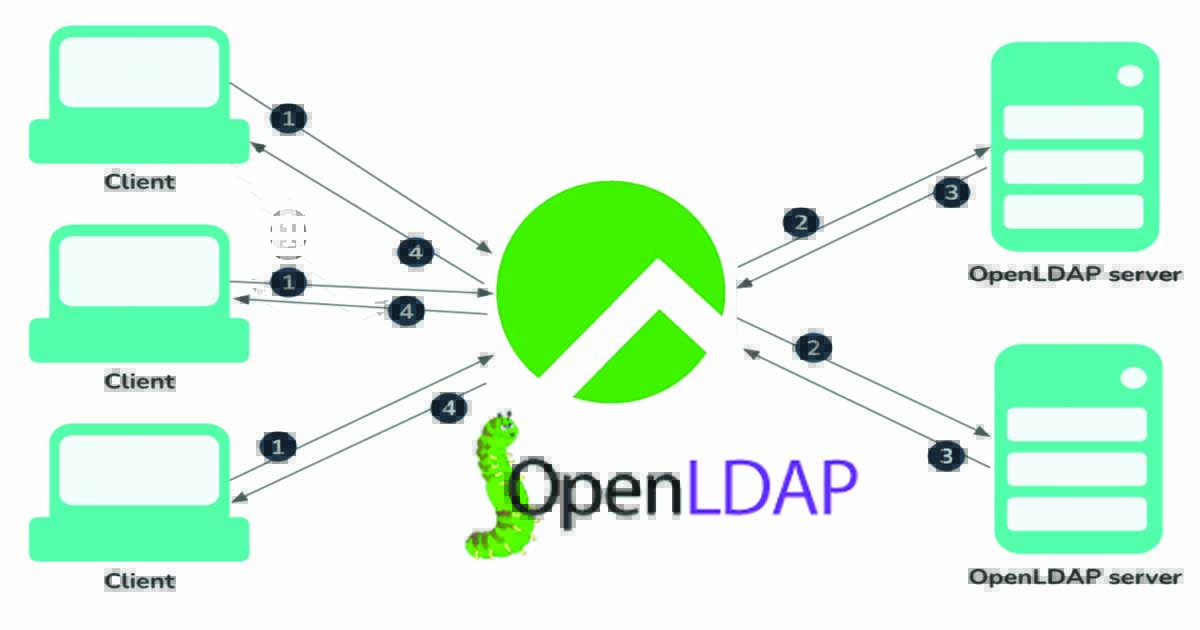

LDAP (Lightweight Directory Access Protocol) is a TCP-based protocol used to access directory services. Directory services provide users with information about other users and resources on a network (usually in the form of address book entries). Entries are stored in a central database and accessed from an LDAP server (OpenLDAP, Windows Server Active Directory, etc.) through an LDAP-enabled client (Microsoft Outlook, Mozilla Thunderbird, etc.).

OpenLDAP adheres to the X.500 series of directory service standards developed by the ITU-T (the standards division of the International Telecommunications Union). This program provides LDAP interoperability between X.500-based applications. According to the X.500 standard, LDAP entries are stored in a hierarchical format consisting of a set of attributes within the entry directory:

-DOMAIN COMPONENT (.com)
     -DOMAIN COMPONENT (example)
         -ORGANIZATIONAL UNIT (People)
             -USER ID (jdoe)
                 -TELEPHONENUMBER (phone number)
                 -GIVENNAME (doe)

LDAP was created by Tim Howes, Steve Kille, and Wengyik Yeong in 1992. Initially, LDAP was a project to provide a directory service alongside the University of Michigan’s email system. A company called Net Boolean Inc. was formed to provide email services to businesses in early 1998. Commercially available LDAP implementations were too expensive for the fledgling company.

Net Boolean created Boolean LDAP from open-source LDAP software provided by the University of Michigan. Kurt Zeilenga of Net Boolean then founded the OpenLDAP Foundation and project in August 1998. OpenLDAP development currently consists of a core team that includes founders Kurt Zeilenga, Howard Chu, and Pierangelo Masarati.

This time, we will try installing OpenLDAP on a FreeBSD 13.2 system. To begin installing OpenLDAP on FreeBSD, you must be logged in as the superuser or root user. To install all OpenLDAP dependencies, you must use the FreeBSD ports system to install OpenLDAP.

root@router2:~ # cd /usr/ports/net/openldap26-server
root@router2:~ # make config && make install clean
root@router2:~ # rehash

After that continue by installing openldap26-client.

root@router2:~ # cd /usr/ports/net/openldap26-client
root@router2:~ # make config && make install clean
root@router2:~ # rehash

Once the OpenLDAP installation is complete, it’s time to configure OpenLDAP for use on your FreeBSD system. Set up the OpenLDAP root password. OpenLDAP stores the LDAP administrator password in the /usr/local/etc/slapd.conf file. OpenLDAP can read this password as plain text or as a hash. The hash obfuscates the password with its unique algorithm, making it invisible.

The next step is to edit the /usr/local/etc/slapd.conf file. If your FreeBSD server’s domain name is unixexplore.com, enter "dc=unixexplore,dc=com". Continue to the next line, rootdn, and enter the same information, omitting the “cn=Manager” segment. For clarity, follow the script below:

root@router2:~ #  ee /usr/local/etc/openldap/slapd.conf
suffix		"dc=unixexplore,dc=com"
rootdn		"cn=Manager,dc=unixexplore,dc=com"

In the slapd.conf file located in the /usr/local/etc/openldap folder, under the include script /usr/local/etc/openldap/schema/core.schema, add the following script:

include /usr/local/etc/openldap/schema/cosine.schema
include /usr/local/etc/openldap/schema/inetorgperson.schema

Now we continue by copying the cosine.schema.sample file to cosine.schema.

root@router2:~ # cp /usr/local/etc/openldap/schema/cosine.schema.sample cosine.schema

Then in the openldap client we edit the /usr/local/etc/openldap/ldap.conf file and add the script below to the ldap.conf file.

root@ns1:~ # ee /usr/local/etc/openldap/ldap.conf
URI     ldap://192.168.5.2
BASE dc=unixexplore,dc=com
BINDDN cn=Manager,dc=unixexplore,dc=com

SIZELIMIT       12
TIMELIMIT       15
DEREF           never

We continue by creating the Start Up rc.d file, add the following script to the /etc/rc.conf file.

root@router2:~ # ee /etc/rc.conf
slapd_enable="YES"
slapd_flags='-h "ldapi://%2fvar%2frun%2fopenldap%2fldapi/ ldap://0.0.0.0/"'
slapd_sockets="/var/run/openldap/ldapi"

After that, you create a user account and group which we will name "ldap".

root@router2:~ # chown -R ldap:ldap /usr/local/etc/openldap/
root@router2:~ # chown -R ldap:ldap /var/run/openldap/

Now let’s run a test to see if there’s anything wrong with the OpenLDAP configuration. Type the following command line.

root@router2:~ # service slapd restart
Stopping slapd.
Waiting for PIDS: 47346.
Performing sanity check on slap configuration: OK
Starting slapd.
root@router2:~ #

The meaning of the example script above is:

Waiting for PIDS: 47346.

Performing sanity check on slap configuration: OK

Starting slapd

This means your OpenLDAP server is running or has been RUNNING on your FreeBSD system.

Let’s check again with the ldapsearch -x script. If the following appears, then OpenLDAP is running normally.

root@ns1:~ # ldapsearch -x
# extended LDIF
#
# LDAPv3
# base <dc=unixexplore,dc=com> (default) with scope subtree
# filter: (objectclass=*)
# requesting: ALL
#

# search result
search: 2
result: 32 No such object

# numResponses: 1

Because ldapadd is sensitive to syntax errors, manually adding entries to an LDAP database (as we did in the testing section above) can be cumbersome.

There are several utilities that allow you to manage your LDAP database more efficiently and easily. phpLDAPadmin is a web-based LDAP browser designed to manage LDAP databases more intuitively.
